“MIX 4” 4-WAY MIXER VALVE
Ideal for manual or motorised control by means of the “LK 100 SMARTCOMFORT CT” or “LK 110 SMARTCOMFORT”. Compact brass or cast iron MIX 4 mixer valves are designed for all types of hydronic heating systems. MIX 4 mixer valves may be installed on very small to very large systems and offer excellent control. They control both the delivery and return of the lines. This type of valve is ideal for motorisation thanks to a low torque. The valves may be installed with clockwise or anti-clockwise opening.

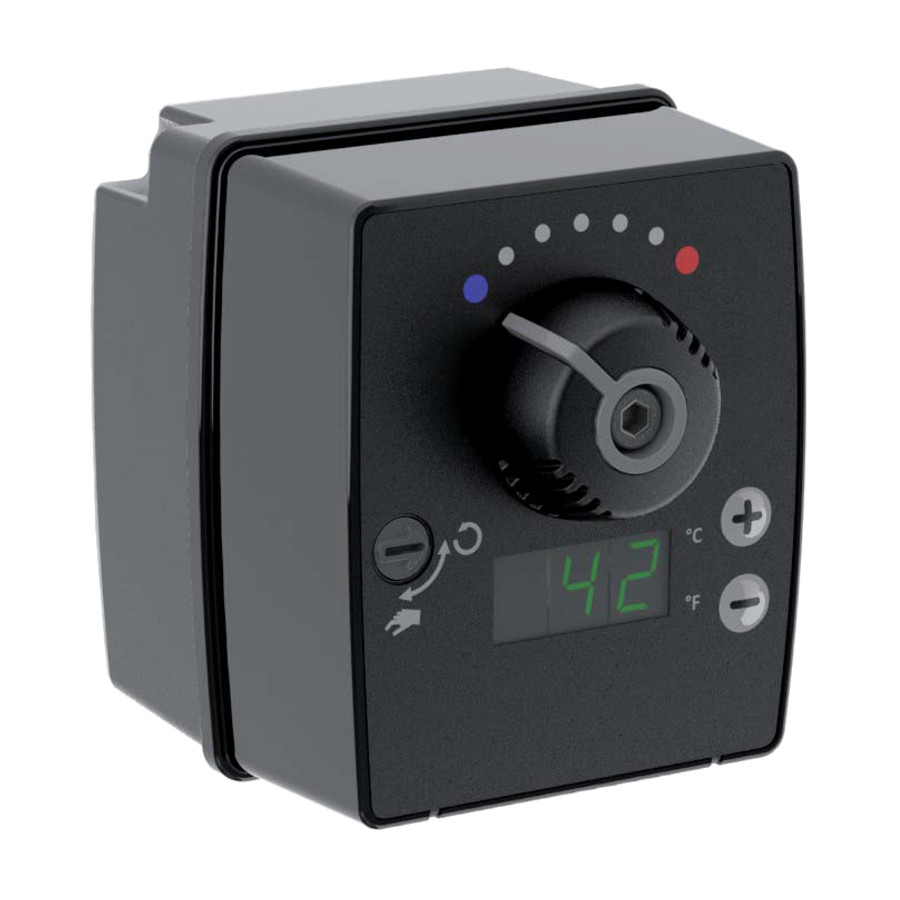

HEATING CONTROLLER “LK 100 SMARTCOMFORT CT”
LK 100 SmartComfort CT is a compact electronic constant temperature control designed to operate 4-way mixing valves in radiant floor heating, radiators, solid fuel and industrial applications.
The supply temperature can be controlled steplessly between 5°C and 99°C. In case of power failure the motor can be controlled manually.
LK 100 SmartComfort CT works continuously and proportionally.
Through data from the supply sensor the motor with built-in electronics controls the valve. The temperature setting will be very accurate. The quick and easy do-it-your-self installation saves on labor charges.
Delivery Parts :
1. LK 100 CT valve actuator 24 VDC with built-in electronics
2. Mounting kit
3. Supply temperature sensor with fix band and 1 meter wire
4. AC adapter 100-240 VAC, 50/60 Hz with 1.8 meter wire
5. Knob with indicator
HEATING CONTROLLER “LK 110 SMARTCOMFORT”
Controller LK 110 SmartComfort is electronic temperature controller for hydronic radiator and underfloor heating applications. LK 110 is equipped with frost protection and minimum/maximum limitation of the supply temperature. It’s equipped with an outdoor sensor. The supply temperature is adjusted according to the outdoor temperature.
LK 110 SmartComfort + SmartComfort RTW (Opzionale) is provided with a room controller. The controller can be set to the desired room temperature. To save energy, there are programmes that have scheduled temperature changes.
Delivery parts:
1. LK 110 valve actuator
2. Mounting kit
3. Supply water temperature sensor and 1 meter wire
4. Outdoor sensor with 15 m cable
5. AC adapter 100-240 VAC, 50/60 Hz with 1.8 meter wire
6. Knob with indicator
